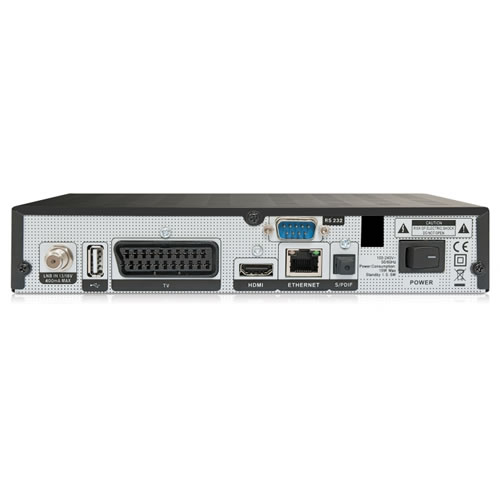

Amiko SHD-8140 HD Digital Satellite Receiver & Media Player

MAIN FEATURES

MPEG-Fully DVB-S / DVB-S2 HD compliant
Conax Embedded Card Reader
5000 channels (TV and Radio) programmable
Satellite Blind-Scan support
One High Speed USB 2.0 Connections
Ethernet & USB WiFi Support (Ralink RT5370 chip only)
YouTube videos*
RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
S/PDIF for digital audio or Dolby Digital Bit-Stream output
DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
Full HD (1080p) Output via HDMI
Channel Recording to External Storage Devices
Timeshift support
True-color, User Friendly On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
Multi-Language support
4 Digit LED Display
RTC (Real-Time-Clock)
Power Consumption in Stand-By: <0.5W
TECHNICAL SPECIFICATIONS

Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 500mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

System Resources
Main Processor: 400MHz based CPU
Flash Memory: 64MBits
DDR RAM: 1024MbitsPower Supply
Input Voltage: Free Voltage (100-250V AC 50/60Hz)
Power Consumption: 30W Max
Stand-By Power Consumption: <0.5W

A/V & Data Input/Output
TV-SCART: Video CVBS/RGB output,
Audio L/R output
RCA A/V: Video CVBS output,
Audio L/R output
S/PDIF: Optical & Coaxial, Digital Audio or Dolby Digital Bit Stream Output
RS-232C: Transfer rate 115.2Kbps,
9 pin D-sub Type
USB: One USB 2.0 slots
HDMI: VER1.3, Type A
Ethernet: 10/100M RJ45 (optional)

Physical Specifications
Size[W*H*D]: 220mm*40mm*160mm
Net Weight: 1.0KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
