Amiko Mini HD Digital Satellite Receiver and Media Player

The new Amiko Mini HD comes in a very stylish mini sized receiver case and is so small it could easily be concealed behind a TV! This receiver is PVR ready via an external USB drive (not included) and includes an RJ-45 ethernet port or optional USB WiFi dongle for connection to your local network and the internet.

SO SMALL IT CAN EASILY BE CONCEALED BEHIND A TV
AND MOUNTED USING INCLUDED STICK PADS

YOUTUBE and YOUPORN VIDEO SUPPORT *

Very easy on-screen menu driven setup using remote control
Includes IR remote eye for concealed operation
USB WiFi dongle available (optional) to add wireless support
2 YEAR HARDWARE GUARANTEE ON ALL AMIKO RECEIVERS

MAIN FEATURES

One Conax Embedded card reader
5000 channels (TV and Radio) programmable
External IR Sensor (Included in the package)
Mountable on TV (Sticker included in the package)
Two High Speed USB 2.0 Connections
Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
YouTube videos
RSS Reader & Weather Forecast Functions (Ethernet or WiFi connection required)
DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
Full HD (1080p) Output via HDMI
Channel Recording to External Storage Devices
Timeshift support
Channel Recording & Timeshifting Simulteniously (optional)
Channel switching time less than 1 second
True-color, User Friendly On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
Multi-Language support
RTC (Real-Time-Clock)
Power Consumption in Stand-By: <0.5W
TECHNICAL SPECIFICATIONS

Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 300mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

System Resources
Main Processor: 400MHz based CPU
Flash Memory: 64MBits
DDR RAM: 1024Mbits

MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

Power Supply
Input Voltage: 12V DC
Power Consumption: 18W Max
Stand-By Power Consumption: <0.5W

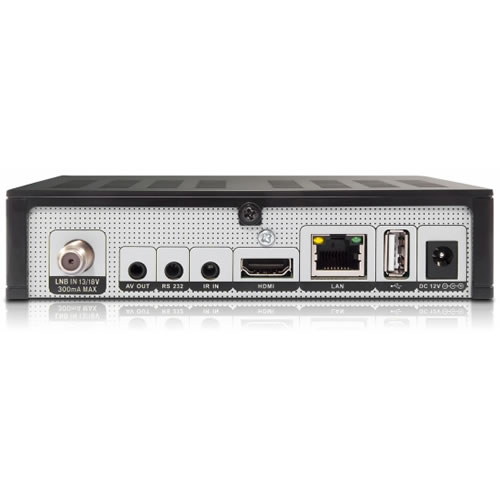

A/V & Data Input/Output
RCA A/V: (Jack Type) Video CVBS output, Audio L/R output
RS-232C: (Jack Type) Transfer rate 115.2Kbps,
9 pin D-sub Type
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A
Ethernet: 10/100M RJ45
IR Port: Jack Type

Physical Specifications
Size[W*H*D]: 144mm*40mm*110mm
Net Weight: 0.5KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
