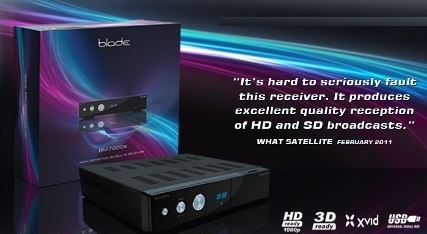

Blade BM7000s HD Satellite Receiver PVR USB Recorder EPG Ethernet

Features:

DVB-S2 Satellite Compliant ( MPEG-4/ H.264)
Output: 576p & 576i, 720p, 1080i, 1080p, 3D
1 Smart Card Reader (MultiCrypt) & 1 Common Interface
HDMI & Component Output (YPbPr) with Upscaler to Improve Picture Quality
10,000 TV & Radio Channels
USB2.0 PVR Ready via external HDD or USB Flash Drive (memory stick) with Time shift, Record & Playback functions
MP3 player and JPEG viewer via external HDD or USB Flash Drive (memory stick)
Software & Channel List download via USB 2.0
Blue Glow Front Panel Display
Sensitive Tuner
Less than 1 second channel change
Dolby Digital Optical S/PDIF
DiSEqC 1.0, 1.1, 1.2 & 1.3 (USALS) compatible
Auto Navigation system – select as many satellites as you want to search
On-screen display with true full color resolution
Enhanced 16 Favorite channel groups
Channel control by: Favorites, Lock, Skip, Move & Delete
Channel sort by: All, Alphabet, Transponder & CAS
Multilingual OSD Menu: English, Spanish, Portuguese, French, Dutch, German, Italian, Turkish, Arabic, Russian, Persian
Extended EPG and program reservation on EPG
Teletext & Subtitle by OSD and VBI
Last channel memory function
Factory default channel list
Various games
Software & channel list upgrade via RS-232C: PC to STB, STB to PC, STB-STB and USB
Parental, Installation & Receiver Lock
Zoom function on Pause & Live channel
Multi picture display
Support for multiple language broadcasts
SCPC & MCPC receivable from C/Ku band satellites LNBs supported: Universal, Single, Single S & C band wideband LNBs
Multi TV Standards supported: PAL G, I, K, M
4:3 & 16:9 Screen Formats
90-250V AC 50/60 Hz
LNB Short Circuit protection onboard
2 Scarts & S-Video and LAN port
Dimension 390x272x70 mm

TUNER & CHANNEL Satellite Input connector F-type, IEC 169-24, female
Loop through connector F-type, IEC 169-24, female
Frequency range 950 MHz ~ 2150 MHz
Input impedance 75O unbalance
Signal level -25 to -69dBm
LNB power & Polarization 14V/18.5V, Max. 400mA
22 KHz tone (22±2)KHz, (0.6±0.2)V
DISEqC control Version 1.0 &1.2 Compatible, USALS
Demodulation QPSK, 8PSK
Input symbol rate DVB-S: 1 ~ 45 Ms/sDVB-S2: 10 ~ 30Msps (QPSK,8PSK)
FEC decode DVB-S: 1/2, 2/3, 3/4, 5/6 and 7/8DVB-S2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (QPSK).3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK)
MPEG Transport Stream & A/V Decoding Transport stream MPEG-II ISO/IEC 13818
Profile level MPEG-II MP@ML, MPEG-IIMP@HL, MPEG-IV AVC/ H.264 HP@L4.0
Input rate Max. 15Mbit/s
Video formats 4:3 Letterbox, 4:3 Pan & Scan, 16:9
Video resolution 720 x 576, 720 x 480, 1920 x 1080i, 1280 x 720Pm and 1080p Full HD
Audio decoding MPEG/ Musicam Layer ?&?
Audio mode Stereo/ Joint stereo/ Mono
Sampling rate 32KHz, 44.1KHz and 48KHz
Main System Main processor 32 bit super scalar RISC CPU
Memory Flash-Rom: 64Mbit DDR, 128MB DDR2 RAM, EEPROM: 256Kbit
Conditional Access Interface PCMCIA 2 Slot (DVB Common Interface Standard)
Smart Card Reader 1Slot
A/V In/Out TV SCART Video output (CVBS,RGB) · Audio output (L,R)
VCR SCART A/V output (CVBS, L/R)A/V input (CVBS, RGB, L/R)
Video RCA/ Cinch, Video output (CVBS)Component output (YPbPr)HDMI (High Definition Multimedia Interface)S-Video
Audio L/R RCA/ Cinch, Volume and Mute control
S/PDIF Optical digital audio output
Data Port RS-232C Transfer rate 115Kbps, 9 pin D-sub type
USB USB 2.0 Host (Support 1 USB Port on Rear Panel )
LAN Port for connecting to the internet
Power Supply Input voltage AC100-250V, 50/60Hz
Type SMPS (Switching Mode Power Supply)
Power consumption Max. 55W
Protection Separate Internal Fuse (The input have lightning protection)
General Data Dimensions (W x D x H) 335 x 247 x 58.5 mm
Weight ca 3,500 g
Operating temperature 0°C ~ +45°C
Storage temperature -10°C ~ +70°

Please Note:
It's the customers responsibility to ensure this receiver equipment is only used for legal purpuses, using this equipment for any ilegal purpuses can contravene the terms and conditions of use.
