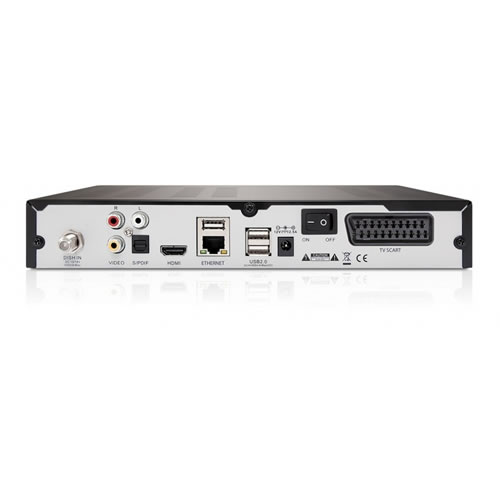

Optibox EVO M7 HD Dual Linux OS Digital Satellite Receiver

!<<h1>>!!Optibox EVO M7 HD Dual Linux OS Digital Satellite Receiver (MARA+ENIGMA2)
Perhaps the best value for money Broadcom based Enigma2 receiver available! Fast 500MHz processor, 1080p and 3D Ready, Blind scan support, front LED display, 12V, Ethernet, WiFi Ready (optional) and 4 USB Ports. PVR Ready, USALS and DiSEqC 1.2 compatible.

MAIN FEATURES

Full HD Digital Hybrid Satellite Receiver and Media Player
One Card Reader
Dual Linux Operating System with easy switching
E2 Support
HbbTV - Interactive Television
3D Ready (3D compliant Enigma 2 image installed is required)
Four High Speed USB2.0 connections
Multimedia Playback (MKV, AVI, MPG, MP4, TS, WMA, MP3 and more...)
TimeShifting - Stop live television (USB hard drive required)
Access your faviourite sites with Opera Web Browser
Interactive Internet Applications
YouTube videos, Internet Radios and much more...
Internet Streaming TV and Radio support
Dual Flash Memory - Store 2 Linux OS’ simultaneously
Ethernet Connection and WiFi / 3G dongle support
Electronic Program Guide (EPG)
Multi-Satellite Controlled with DiSEqC1.0, 1.1, 1.2 and USALS
Automatic DiSEqC detection
User Friendly Multilanguage On-Screen Display (OSD)
High Resolution Graphic User Interface (GUI)
NTP - Network Time Protocol
Multi-Language - Audio / Teletext / Subtitle - support
Powerful channel management tools (Skip, Delete, Move, Rename, Lock)
Easy Software Upgrades through the Internet
Full HD HDMI 1.4 Connection
Dolby Digital Bit-Stream out via Optical S/PDIF and HDMI
White Four Digit (7 Segment) LED Display
Low Power Consumption Active Stand-By and Passive Stand-by for bringing
flexibility for the most various uses
DC 12V Power Supply
TECHNICAL FEATURES

Tuner & Demodulation

Tuner Type: 1 DVB-S/S2
Input Connector: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V
Current: Max. 500mA Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

MPEG TS A/V Decoding

Transport Stream: MPEG4, MPEG2
Profile Level: MPEG2 MP@HL, MPEG4 AVC
MP@L3, MP@L4, HP@L4
Video Resolution: 576i, 576p, 720p, 1080i, 1080p
Aspect Ratio: 4:3, 16:9, Letterbox, Pan&Scan, Zoom
Audio Decoding: MPEG1 L1/2, MPEG2 L2, AC3,
Dolby Digital plus, PCM with
decoded stereo, AAC Stereo
Audio Mode: Mono, Left, Right, Stereo, Dolby Digital

System Resources

CPU : MIPS Processor BRCM 7358A - 500 MHz
Flash Memory: NOR 4MB, NAND 512MB
DDR: 512MB
Power Supply
Input Voltage: 12V, 2.5A
Type: DC power adapter
Power Consumption: Max. 30W
10W MAX (Active Standby)
0.5W MAX (Passive Standby)

A/V & Data Input/Output

RCA: Video CVBS, Audio L/R
USB: 4 ports (USB2.0)
HDMI: v1.4
Ethernet: 10/100M
SPDIF: Optical

Physical Specifications

Size[W*H*D]: 260x45x213mm
Net Weight: Approx. 2kg
Operating Temperature: +5ºC ~ +50ºC
Storage Temperature: -40ºC ~ +65ºC
