ICECRYPT S1600CHD Digital Satellite HD Receiver


Warranty Information 2 Year Warranty

The new S1600 CHD receiver from Icecrypt is a Full HD 1080P DVB S2 Mini Satellite receiver with 2 USB outputs for recording on to an external device, ethernet port for internet access, Full DiSEqC functions including USALS, 1 multi crypt card reader which works perfect with all of our Viewing Cards.

The box is also 12v and comes with mains power supply (12v lead available as an extra) making this tiny box perfect for camping, caravanning and for use behind a flat screen.

3rd Party software available on the internet for Youtube, Mediaplayer, and Internet. Requires firmware upgrade not supported by Icecrypt.

One Multicrypt Embedded card reader, this box will read all the main cards, VIACCESS, IRDETO, CONAX etc.

6000 channels (TV and Radio) programmable
External IR Sensor (Included in the package)
Mountable on TV (stick pad included in the package)
Two High Speed USB 2.0 Connections
Ethernet Connection & USB WiFi Support (Ralink RT5370 chip only)
YouTube and YouP*rn videos*
RSS Reader & Weather Forecast Functions*
DiSEqC 1.0, 1.1, 1.2 and USALS Compatible
Full HD (1080p) Output via HDMI
Channel Recording to External Storage Devices
Timeshift support
Channel Recording & Timeshifting Simulteniously option
Channel switching time less than 1 second
True-color, User Friendly On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Exciting games embedded
Multi-Language support
RTC (Real-Time-Clock)
Power Consumption in Stand-By: <0.5W

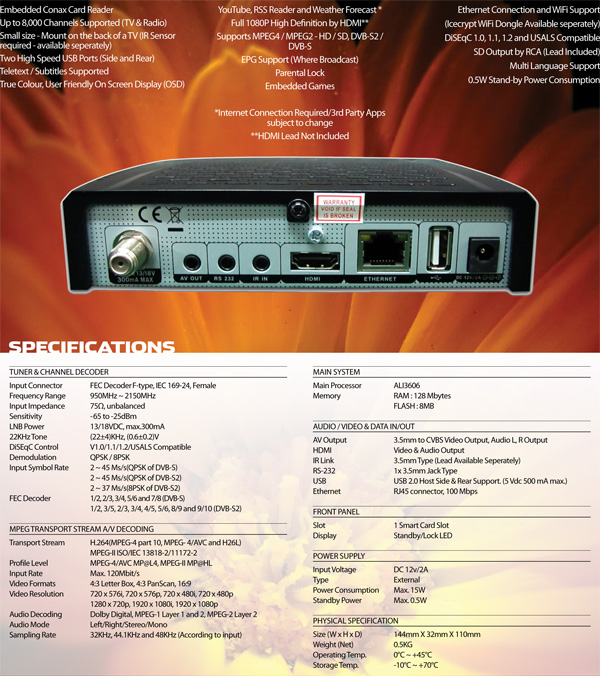

Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 300mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto

System Resources
Main Processor: 400MHz based CPU
Flash Memory: 64MBits
DDR RAM: 1024Mbits

MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

Power Supply
Input Voltage: 12V DC
Power Consumption: 18W Max
Stand-By Power Consumption: <0.5W

A/V & Data Input/Output
RCA A/V: (Jack Type) Video CVBS output, Audio L/R output
RS-232C: (Jack Type) Transfer rate 115.2Kbps,
9 pin D-sub Type
USB: Two USB 2.0 slots
HDMI: VER1.3, Type A
Ethernet: 10/100M RJ45
IR Port: Jack Type

Physical Specifications
Size[W*H*D]: 144mm*40mm*110mm
Net Weight: 0.5KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)

*Requires 3rd party software add on
