ICECRYPT S3700CHD Digital Satellite HD Receiver

ICECRYPT S3700CHD Digital Satellite HD Receiver

Triple Tuners: Twin Satellite HD Receivers And Single Freeview Tuner or Cable Tuner

2 YEARS WARRANTY

* FULL HD TWIN TUNER SATELLITE RECEIVER AND SINGLE TERRESTRIAL/CABLE HYBRID TUNER
* TWIN CONAX CARD READERS, TWO USBS AND AN RF MODULATOR
* ETHERNET PORT, WIFI AND 3G MODEM SUPPORT (DONGLE SUPPLIED SEPERATELY)
* TIME SHIFTING, RECORDING, PLAYBACK AND MEDIA SUPPORT WITH EXTERNAL HDD (USB 2.0)
* UNLIMITED NUMBER OF TV AND RADIO CHANNELS SUPPORTED

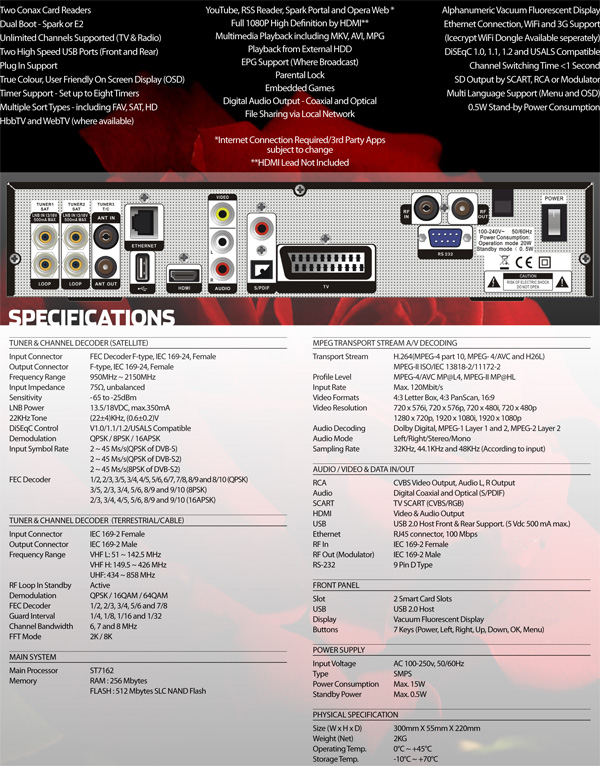

S3700CHD Specs

2 x MPEG-Fully DVB-S / DVB-S2 tuners
1 x DVB-T tuner
Dual Boot - Linux Embedded OS
Two Conax Embedded Card Readers
HbbTV - Interactive Television
Interactive Web Applications right on your Television
Youtube, SHOUTcast, Picasa, Twitter, Google Talk!, RSS Reader, and much more!
Opera Web Browser with FlashLite
USB WiFi Connection & 3G Internet Modem Support (Optional)
USB Wireless Keyboard & Mouse Support (Optional)
Ethernet Connection
Multi-Satellite Reception with DiSEqC 1.0, 1.1, 1.2 and USALS
S/PDIF for PCM Audio, Dolby Digital and DTS Bit-Stream output
Full HD 1080p output via HDMI
Endless channels (TV and Radio) programmable
Two High Speed USB2.0 Ports (with USB HUB Support!)
AVI, MKV, MPG, TS, WMA, WMV, M2TS, FLV, DAT, ASF, MP3 playback
Online Subtitles
TimeShifting and Recording on different Channels at the same time
Easy-To-Use Online Software Upgrades & Channel Lists
Online User's Manual & F.A.Q Videos
Alphanumeric VFD Display
Endless possibilities with Plug-In support
Program and Channel information transfer from receiver to receiver
Software Upgrade support via USB or Internet
<0.5W Power Consumption in Stand-By Mode

SYSTEM RESOURCES
Main Processor: STi7162 450MHz CPU

TUNER / FRONT-END
Tuner Type: DVB-S / DVB-S2 & DVB-T
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V, Current: Max. 500mA, Overload Protection
22KHz Tone: Frequency: 22±1KHz
DiSEqC Control: Amplitude: 0.6±0.2V, Version 1.0, 1.1 1.2, USALS Available
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps, Convolution Code Rate
1/2, 2/3, 3/4, 5/6,7/8,1/4,1/3,2/5,3/5,4/5,8/9,9/10 and Auto

Input Connector: IEC type, Connector, Female
Loop Through: IEC type, Connector, Male,
Frequency Range: 47 - 862MHz
Bandwidth: 7/8MHz
Demodulation: QAM, COFDM 2K/8K
Constellations: QPSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Guard Interval: 1/4, 1/8, 1/16, 1/32
FEC Decoder: 1/2, 2/3, 3/4, 5/6, 7/8, K=7

POWER SUPPLY
Input Voltage: Free Voltage (100~240V AC, 50/60Hz)
Power Consumption: 20W MAX (<1W in Stand-By Mode)MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080p
Audio Decoding: MEPG-1 layer I/II, Mpeg2 layerII, Dolby Digital, DTS
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

A/V & DATA INPUT/OUTPUT
TV-SCART: Video CVBS/RGB output, Audio L/R output
RCA A/V: Video CVBS output, Audio L/R output
S/PDIF: Optical & Coaxial, Digital Audio / Dolby Digital / DTS Bit Stream Output
RS-232C: Transfer rate 115.2Kbps, 9 pin D-sub Type
RJ-45: 10M/100M
USB: Two USB 2.0 slots - Compatible for Host
HDMI: VER1.3, Type A

PHYSICAL SPECIFICATION
Size[W*H*D]: 300mm*64mm*231mm
Net Weight: 2.0KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)

ICECRYPT S3700HDCCI Setup (04:48)
Easy first time installation video for the Icecrypt S3700CHD Triple Tuner receiver..
