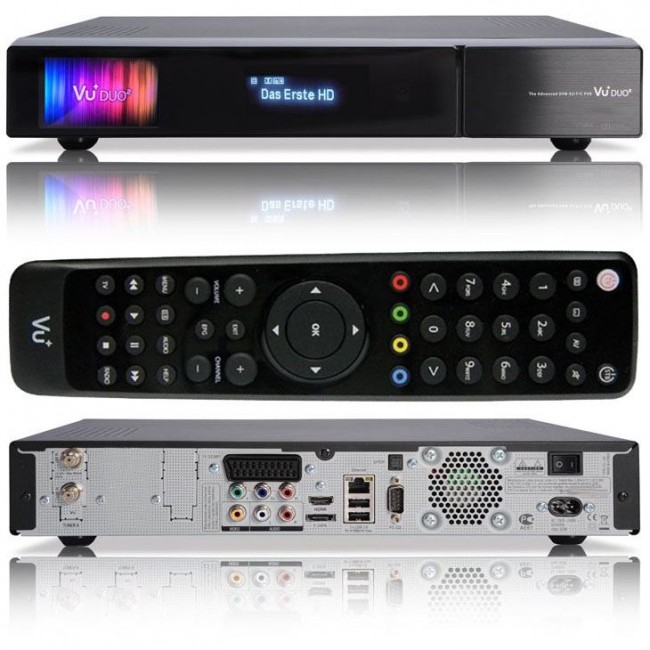

VU+ Duo2 Full HD Twin Linux Satellite Receiver 2x DVB-S2 Tuner

VU+ Duo2 Full HD Twin Linux Satellite Receiver 2x DVB-S2 Tuner

Ref: VUDUO2

1300 MHz dual-core MIPS processor
1GB Flash
2GB DDR3 DRAM
Gigabit Lan
2 x DVB Common Interface slot
2 x Smartcard-Reader (Xcrypt)
3 x USB (1 x front, 2 x back)
SPDIF audio output optical (digital)
1 x HDMI 1.4 video / audio output (digital)
1 x Scart (TV)
1 x RCA video output
2 x audio output (L / R) RCA (analog)
Plug and Play support for 2.5 and 3.5 "SATA - Hard Drives
Unlimited channel lists for TV / Radio
EPG (electronic program guide) support
Support of Bouquet lists
OSD in many languages ??and skin-support
Automatic / manual channel search
DiSEqC 1.0/1.1/1.2, USALS
Power switch?
DVB-S2 and DVB-S2 Dual Tuner:

Input Frequency Range 950 .. 2150 MHz
QPSK Demodulation EN 302 307
Signal Level - 65 dBm ... - 25 dBm
Noise Level 12 dB max.
DBS-Tuner Input Connector F-Type female
Input impedance 75 ohms
AFC capture range + / - 3 MHz
Demodulation Shaped QPSK and 8PSK
Viterbi and Reed-Solomon FEC
Viterbi rates 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
Roll-off Factor 35%

DVB-C/T- hybrid tuner (sold separately):

VHF channels: 2-12 (49 .. 230 MHz)
UHF channels: 21-69 (470 .. 861 MHz)
DVB-C HDTV compatible
Input frequency range: 51 .. 858 MHz
Symbol rate: 1 ... 7 Mbaud / s
Input Impedance: 75 ohms
Tuner In / Out connector: IEC
DVB-C / DVB-T can be selected via software

Common Interface:

2x Common Interface Power Consumption max. 0.35 A/5V

Video decoder:

Video Compression MPEG-2 / H.264 and MPEG-1 compatible
Video Standard PAL G / 25 Hz, NTSC
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device

Output digital:

Output Level 0,5 Vss on 75 Ohm
Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz
S / PDIF-Output optical, coaxial (AC3)
Audio decoder
Audio compression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main / sub), Stereo
Sampling frequencies 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22:05 kHz, 24 kHz

Output analog:

Output Level L / R 0,5 Vss on 600 Ohm
THD> 60 dB (1 kHz)
Crosstalk <-65 dB
Video parameter: Input Level FBAS 1 Vss + / - 0.25 dB on 75 Ohm
TV-Scart: Output: FBAS, RGB, over OSD selectable
Ethernet: 1000/100/10 MBit compatible interface
USB: USB 2.0 connector (3x)

LNB power and DVB-S2 tuner:

LNB Current 400mA max. , Short-circuit proof
LNB Voltage horizontal "no load 19.5V" 17,6 V at 400mA
LNB Voltage vertical "no load 14.5V" 11,8 V at 400mA
LNB is switched off in standby mode
Control of the satellite position: DiSEqC 1.0/1.1/1.2 and USALS - Rotor Control

Power consumption:

<15W (in operation, with LNB)
<13W (in operation, without LNB)
<0.5 W (Deep-Standby-Mode)

Input voltage:

230V / 50 Hz alternating current + / - 15%
110V / 60 Hz alternating current + / - 15%

General:

Ambient Temperature +15 ° C. .. +35 ° C
Humidity <80%
Dimensions (W x D x H): 380 mm x 290 mm x 60 mm
Weight: 3,0 kg without HDD?
