SatLink WS6908 3.5

SatLink WS6908 3.5" DVB-S Professional Digital Satellite Meter

Ref: WS6908-SATLINK

SPECIAL FEATURES INCLUDE:


- Colour TFT LC Display with 3,5" / 8,9cm
- Fully DVB Compliant(SATLINK WS-6908)
- DiSEqC & 22kHz Switch Control
- Video format: PAL/NTSC/SECAM
- Live FTA Digital Picture and Sound
- dBuV Readout
- Carrier to Noise Readout
- Bit Error Rate Readout
- Sound warning prompt locking satellite
- Automatc Channel Scan TV + Radio
- Receive and Play of DVB-S FTA TV Programs in Picture and Ton
- Receive and Play of DVB-S FTA Radio Programs in Ton
- AV in and AV out function
- Can connect to a TV and use as a normal satellite receiver
- Software Upgradeable via USB Menory Stick
- Lithium-ion 3000mA Power Battery
- Up to 6 hours working time with integrated battery
- Only 4 hours loading time(SATLINK WS-6908)
- Nonstop working time with extern power supply
- Size: 158x95x45,Very small and portable.Size: 158x95x45,Very small and portable
- 7 menu languages: German, English, French, Portuguese, Spanish, Italian, Polish

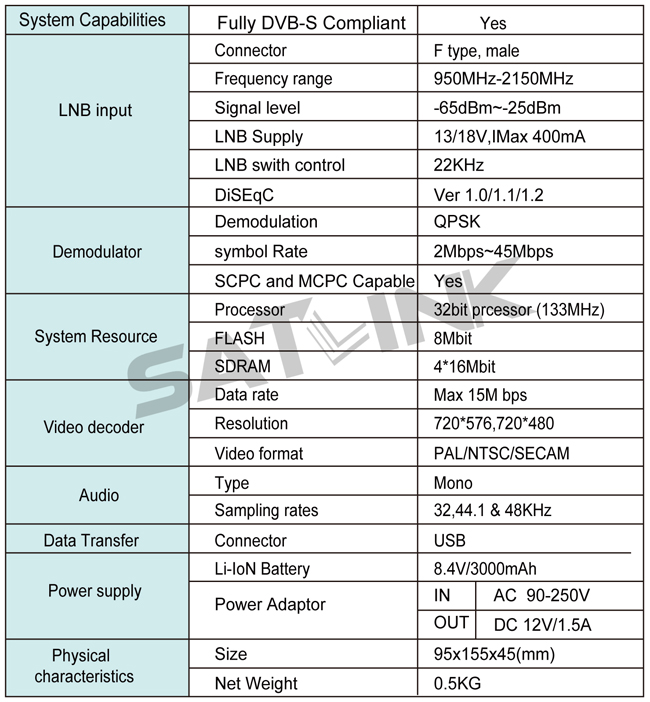

Technical Parameter:
System Capabilities
Fully DVB-S Compliant
Yes
LNB input
Connector
F type, Female
Frequency Range
950MHz-2150MHz
Signal Level
-65dBm~-25dBm
LNB Powewr
13/18V,Max350mA
LNB Switch Control
22KHz
DiSEqC
Ver 1.0/ 1.2
Demodulator
Front end
QPSK
Demodulation Range
2Mbps~45Mbps
SCPC and MCPC Capable
Yes
System Resources
Processor
32bit processor (133MHz)
FLASH
8Mbyte
SDRAM
4*16Mbyte
Video Decoder
MPEG 2
MP@ML
Data Rate
Max15M bits/s
Resolution
720*576,720*480
Video format
PAL/NTSC/SECAM
Audio
MPEG
MPEG-1&2
Type
Single
Sampling Rate
32,44.1 & 48KHz
Data Transfer
Connector
USB
Power Supply
LI-ION battery
3000 mAH/8.4V Max
Power Adaptor
In
AC 100-220
Out
DC 12V
Physical characteristics
Size
9.5x15.5x4.5 (cm)
Net Weight
0.5KG
