Sat-Link WS-6909 LCD Satellite And Aerial Combo Meter



This WS-6909 is a battery powered handheld Satellite adjustment meter demodulating DVB-S and DVB-T Signal. It's very convenient for installer to catch the signal quickly and accurately and adjust the antenna to the best position. With this finder, you can enjoy watching free channels!

Features:


* High quality and stable performance: it's with a microprocessor controller.
* 3.5" LCD color display, bigger menu window.
* Channel picture, signal strength and signal quality can be showed on LCD Screen after you set up your local DVB-S & DVB-T Parameter.
* It's with auto-protection for LNB short-circuit.
* It shows Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
* It can at most show five channels' signal at the same menu which is very helpful for adjustment.
* Supports both AV IN and AV OUT for camera, LCD, etc.
* Built-in large capacity 3000mAH Li-ion battery.
* Matched with a high quality protective case.
* Support language: English, German, French, Portuguese, Spanish, Italian, Czech, Greek.
* English user manual is included in the CD disk.

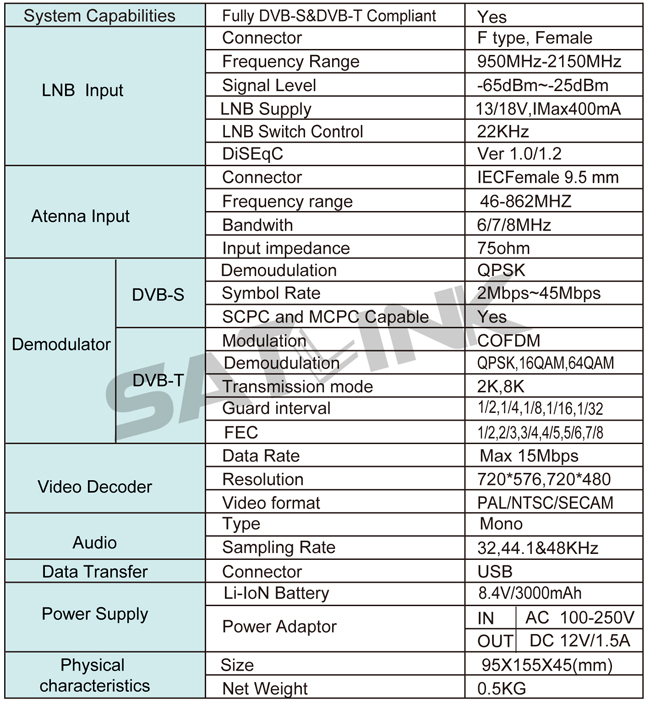

Specifications:


System capabilities
Fully DVB-S & DVB-T Comliant Yes
Antenna input DVB-S
Connector F type female
Frequency range 950MHz-2150MHz
Signal level -65dBm~-25dBm
LNB power 13/18V, max 350mA
LNB Switch control 22KHz
DiSEqC Ver 1.0/1.2
DVB-T Connector IEC Female 9.5mm
Frequency range VHF and UHF
Bandwidth 8/7/6MHz
Input impedance 75 ohm
Demodulator DVB-S
Front end QPSK
Demodulation Range 2Mbps~45Mbps
SCPC and MCPC Capable Yes
DVB-T Modulation COFDM
Constellation QPSK,16QAM,64QAM
Transmission mode 2K,8K
Guard interval 1/2,1/4,1/8,1/16,1/32
FEC 1/2,2/3,3/4,4/5,5/6,7/8
System resource Processor 32bit processor (133MHz)
SDRAM 4 * 16Mbyte
FLASH 8Mbyte
Video decoder MPEG2 Main Profile @ Main Level
Data Rate up to 15Mbits/s
Resolution 720 * 576, 720 * 480
Video Format PAL/NTSC/SECAM
MPEG Audio MPEG MPEG 1&2
Type Mono
Sampling rates 32, 44.1 and 48KHz
Data Tranfer Connector USB type
Power supply Li-ion Battery 8.4V/3000mAH
Input AC 100-240V 50/60Hz
Output DC 12V
Plug Standard EU
Item size: 16.5 * 9 * 4.5cm
Item weight: 454g
Package size: 26.5 * 21 * 7cm
Package weight: 1214g
