SatLink WS6922 HD MPEG4 Digital Satellite Finder Meter DVB-S DVB-S2

SatLink WS6922 HD MPEG4 Digital Satellite Finder Meter DVB-S DVB-S2

Ref: WS6922-SATLINK

SPECIAL FEATURES INCLUDE:


* Colour TFT LC Display with 3,5" / 8,9cm
* Keypad with Lighting
* Flashlight Function (built-in LED Lamp on the Rear)
* Frequency range: 950 - 2150 MHz (DVB-S + S2)
* Built-in speaker
* Angle calculation of Azimuth, Alevation and LNB Tilt (after entering the Coordination own Data)
* Sound warning prompt locking Satellite
* Display the Signal Strength in Percent and as a Bar
* Display of BER
* Display of C/N
* Display of Signal Range in dBµV
* DiSEqC Motor Control
* DiSEqC Control for Multi-Switch and simple DiSEqC Switches
* Automatc Channel Scan TV + Radio
* Receive and Play of DVB-S+S2 HD FTA TV Programs in Picture and Tone
* Receive and Play of DVB-S FTA Radio Programs in Ton
* Switching the Screen Size 4:4 / 16:9
* AV in and AV out function
* Software Upgradeable via USB flash Stick
* Storage and recovery of their own system settings using a USB flash Stick
* Lithium-ion 3000mA Power Battery

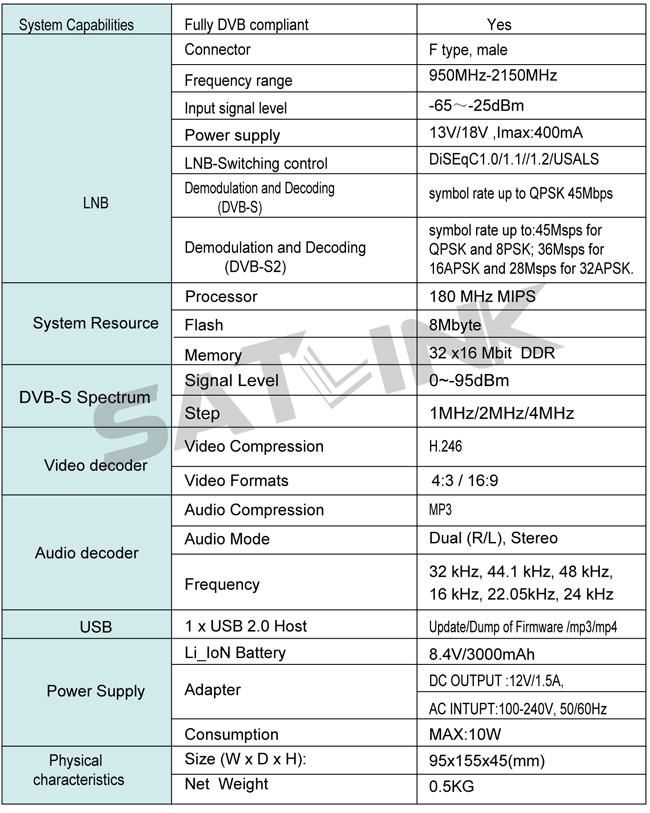

Technical data:

LNB/Tuner input: Connector: F type,feminin
Frequency range: 950 MHz - 2150 MHz


Signal lever: -65 dB/µV~-25 dB/µV
LNB supply : 13/18 V, max 350 mA
Mode: 2K, 8K
LNB Control: 22 KHz
DiSEqC : Ver. 1.0, 1.1, 1.2 + USALS

Demodulator: Front End: QPSK
Symbolrate: 2 Mbps~45 Mbps


SCPC and MCPC: Yes
Spectrum Analyzer: NO

System resource: Processor: 32bit processor (133MHz)
SDRAM: 16 MB (64Mhz)
FLASH: 8 MB
EEPROM: 16*16 MB (DDR1)

Video decoder: MPEG 2


: Main Proflie@Main Level


Data Rate: up to 15 Mbits/s
Resolution: 720 x 576 (PAL), 720 x 480 (NTSC)
Video Format: PAL / NTSC / SECAM



MPEG Audio: MPEG 1 layer 1&2
Typ: Mono
Sampling: 32, 44.1 and 48 KHz


Serial data interface: Connector: USB Type

Power supply: Li-oN Batteriy: 3000mA/h
Supply Voltage: 12,6 Volt
Charger: 90 - 240 V / AC - 14,5 V / DC 1 A

Physical Specification: Size: 9,5 x 15,5 x 4,5 cm
Wight: 0,5 Kg
