SatLink WS6935 DVB-T MPEG4 H264 HD Terrestrial Aerial Meter

Satlink WS-6935HD DVB-T MPEG4 H.264 QPSK,16QAM,64QAM DIGITAL TERRESTRIAL SIGNAL FINDER

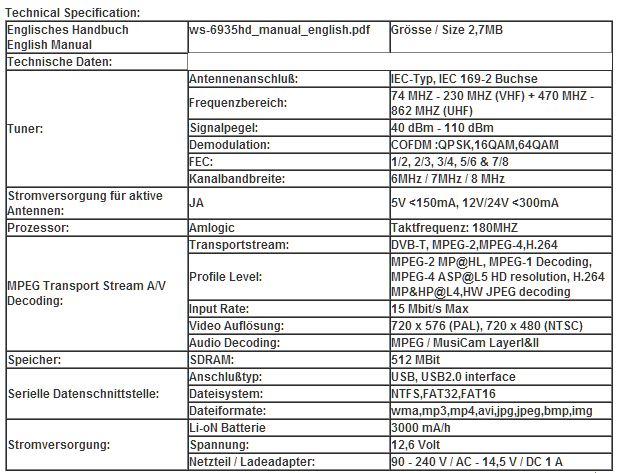

Specifications

* Terrestrial Signal Meter DVB-T Finder Meter WS-6935
* HD Aerial Meter for HD Signals
* HD MPE4 H.264 4.3LCD screen
* 4.5 LCD screen
* Auto Search

Specifications

TRANSMISSION STANDARDS DVB-T, MPEG-2,MPEG-4,H.264

SATELLITE INPUT/DEMODULATION

Connector Type F Type Female

Input Frequency 46 to 862 MHz

Input impedance 75 ohms

Band width 6M/7M/8M

ANT Power 5V<150mA 12V/24V<300mA,

Demodulation Type COFDM :QPSK,16QAM,64QAM

LCD FEATURES LCD Type TFT TRANSMISSIVE Number of Dots 480(RGB) x272

Active area (WxH) 95.04x53.86 mm2

AV output interface Connector Type 3.5 mm Jack

Video Output CVBS,

Audio output Stereo Audio L/R output

AV input interface Connector Type 3.5 mm Jack

Video input CVBS,

Audio input Stereo Audio L/R input

AUDIO/VIDEO PROCESSING

Video decompression MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding

Resolving rate PAL-25 frame@720*576,NTSC-30 frame@720*480,

Signal compatibility Support conversion for different video formats

Video Format 4:3,16:9,By Pan & Scan and Letter Box conversion

Audio decompression MPEG-1 Layer I/II ,MPEG-2 Layer I/II,

Audio output mode Stereo, Mono, R/L

DATA SERVICE PORT

Connector USB

Data protocol USB2.0 interface

File management system

NTFS,FAT32,FAT16

file format wma,mp3,mp4,avi,jpg,jpeg,bmp,img

MICROPROCESSOR

Microprocessor Amlogic

Clock Frequency 180MHz

SDRAM Memory 512Mbit

Power SUPPLY Li_Ion Battery 8.4V/3000mAh

Adapter OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz

Power consumption Max. 10W

PHYSICAL CHARACERSTICS

Size (W x D x H) 9.5x15.5x4.5(cm3)

Net Weight 1kg
