SatLink WS6936 Satellite And Aerial Meter DVB-S-T Spectrum Analyzer
including:
1X WS-6936
1X DVB-T Antenne with Magnet Foot
1X yellow Protective rubber cover
1X large nylon carry bag with shoulder strap
1X 220V charging adapter
1X 12V car charger
1X A / V Cable Adapter 3.5 jack to 3x RCA jack
1X User manual in English
DIGITAL SATELLITE (DVB-S) & TERRESTRIAL SIGNAL FINDER (DVB-T) Real Spectrum Analyzer
Now with dBm, dBmV or dBµV measurements in DVB-S+T
Satlink WS-6936 DVB-S&T is an simple Messcomputer for DVB-S+T
Satlink WS-6936 DVB-S&T has a built in TFT LC Display with 3,5" / 8,9cm
Satlink WS-6936 DVB-S&T is excellent for DVB-S+T antenna Installitions
Satlink WS-6936 DVB-S&T can also use as a DVB-S+T Receiver on a TV
Satlink WS-6936 DVB-S&T work with files from USB-stick (Format JPG + MP3)
AV-IN & OUTPUT
Satlink Satlink WS-6936 DVB-S&T can be connected as a standard receiver to a TV. In addition, the device has an AV input. At this, other playback devices or AV surveillance cameras to be connected!
MultimediaPlayer
Display of photos stored in JPG format and play MP3 files from your own USB drive!
PC Software CTK-DB TOOL
With the PC software "CTK-DB tool" you can edit the transponder / satellite list.
Satellite & Add Remove
Transponder Add / Remove
The final lists will be using a USB - memory stick to transfer to the meter.
For the first time in a economical digital meter, you are now able to view the actual channel on the screen of the meter. Now you can quickly and accurately align the satellite AND you can instantly check the stability of the channel right on the screen of the meter. Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. There is never a need to send your meter in for a upgrade.
Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
DVB-T:
COFDM Demodulated
Frequency range:46-870MHz
Spectrum Analyzer
Level range:40-110dBuV
Input Resistance:75ohm
Demodulation:QPSK,16QAM,64QAM
Test: BER, C/N, FEC Signal Quality and Strength
Multi-Channel Simultaneous Measurement
Auto Full Frequency Scan
Auto scan of frequency selected
Power supply at RFIN:5V/15V/24V*(100mA)
DVB-S:
Input Frequency range:950-2150MHz
Spectrum Analyzer
Input Level:-65dbm-25dbm
Input Resistance:75ohm
Symbol rate:2Msps-45Msps
Test: BER, C/N, FEC Signal Quality and Strength
Auto search: NIT Search ,Manul Search
DisEqC,22K Supported
LNB power supply :H + 18V + 13V 400mA
OTHER:
8 menu languages: English, German, French, Portuguese, Spanish, Italian, Czech, Greek
8.4V/3000mAH POWER Lion battery for real long working-time
4,4" / 11cm Color LCD 16:9
Keypad with blue Backlight
Flashlight function (push F1 button for 3 sec)
Power adapter input: AC 90V-240V/50Hz
Power adapter output: DC 12V/1.5A
Working time:4-6 hours (full charge)
Charging time: 5 hours from flat
Car charger supplied
Dimension: 210 X 120 X 45mm
Net weight: 0,5kg

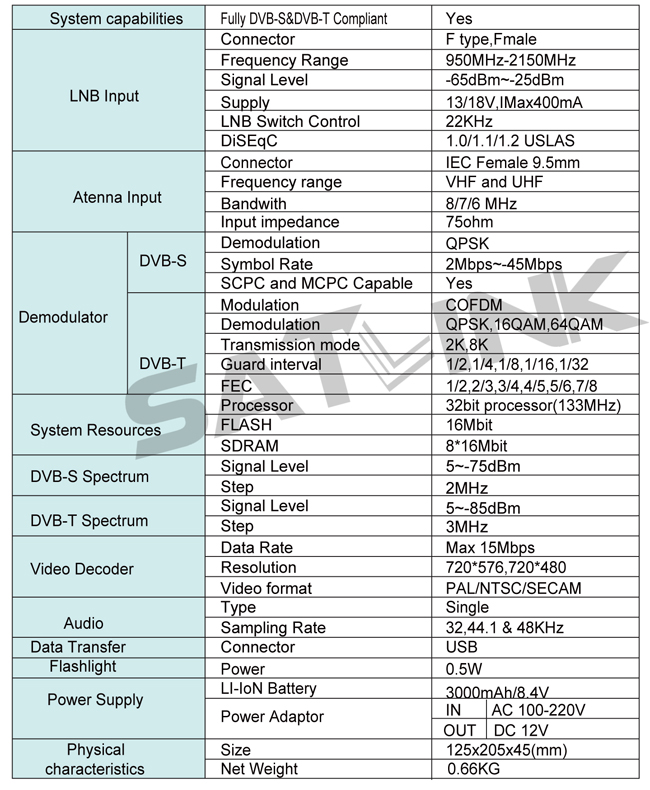

Technical Parameter:
Tuner DVB-T:
Connector:
IEC-Typ, IEC 169-2
Frequency Range:
76 MHZ - 870 MHZ
Signal Level:
40 dB/µV - 110 dB/µV
Demodulation:
CODFM
Mode:
2K, 8K
FEC:
1/2, 2/3, 3/4, 5/6 & 7/8
Channel Range:
6MHz / 7MHz / 8 MHz
Tuner DVB-S:
Connector:
F- Socket
Frequency Range:
950 MHz - 2150 MHz
Signal Level:
-65 dB/µV~-25 dB/µV
LNB Power:
13/18 V, max 400 mA
Mode:
2K, 8K
LNB Control:
22 KHz
DiSEqC :
Ver. 1.0, 1.2
MPEG Transport Stream A/V Decoding:
Transportstream:
MPEG-2 ISO/IEC 13818
Profile Level:
MPEG2 MP@ML
Input Rate:
15 Mbit/s Max
Video Resolution:
720 x 576 (PAL), 720 x 480 (NTSC)
Audio Decoding:
MPEG / MusiCam LayerI&II
Demodulator:
Front End:
QPSK
Symbolrate:
2 Mbps~45 Mbps
SCPC and MCPC:
YES
Spectrum Analyzer:
YES
MEMORY:
SDRAM:
16* MB
FLASH:
8 MB
Serial connection:
TYP:
USB
Power Supply:
Li-oN Battery
3000 mA/h
Voltage:
8,4 Volt
Charger:
90 - 240 V / AC - 12 V / DC 1 A
