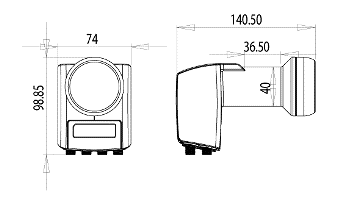

LNB Inverto Pro Octo Switch 8 Outputs 40mm 0.2dB

Product Specifications

Low Band Input Frequency Range 10.7~11.7 GHz
Low Band Output Frequency Range 950~1950 MH
LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7~12.75 GHz
High Band Output Frequency Range 1100~2150 MHz
LO Frequency 10.6 GHz
Noise Figure 0.2dB typ. (0.7dB max.)
LO Initial Accuracy +/- 1.0 MHz max.
LO Temperature Drift +/- 3.0 MHz max.
LO Phase Noise @ 10K Hz -90 dBc/Hz max.
Conversion Gain 55 dB min.
Gain Ripple +/- 0.75 dB/27 MHz
Gain Variation +/- 4 dB
Image Rejection 40 dB min.
1 dB Compression Point (O/P) 0.0 dBm min.
Crosstalk Isolation 18 [min.] dB
Control Signals Ca [ V ] 10.0 ~ 14.0 V
Control Signals Cb [ H ] 16.0~20.0 V
Control Signals Cc 22+/-4 KHz
Output Supurious - 60 [max.] dBc
Output VSWR 2.5 : 1
Radiated Interference -45 dBm
DC Power 210 mA Max.@ 11-20V
Working Temperature -30~+60 °C
Output Impedance (connect to STB) 75 O (F-Type)
Weight 256 g
