SPECIAL FEATURES INCLUDE:

* View All The Actual FTA Satellite Channels On The Meters Screen.
* Auto Re-Calibration Due To The Unique Calibration System Built in to the Meter.
* Automaticlly Calculates Dish Angles And Settings Based On Your Longditude And Latitude.
* Calculates Your Dish Angles And Alignment Settings so you can quickly and accurately align the satellite dish and you can instantly check the stability of the channel right on the screen of the meter.
* Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
* All Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
* View All FTA Satellite Channels On Screen With Sound.

OTHER FEATURES INCLUDE:

* 3.5 Inch High definition TFT LCD Screen which Can show live Channels
* NEC Solution
* Shows both S/N and C/N
* Shows strength and quality readings
* Sound and Light Alarm When Lock Signal
* Shows channel picture
* Show numerical reading and bar reading
* Digital Meter for Signal Strength(in numerical & #118alue and picture)
* Easy Satellite Manager ( EDIT, delete and SCAN)
* Edit TP, Frequency, LNB switch, Symbol Rate etc.
* Completely programmable by the user
* Input Frequency 950-2150MHz
* Input Level -65-25dBm
* Input Impedance 75(ohm)
* Auto Calculate Angle of AZ ,EL
* Upgrade S/W by PC
* Easy to carry, size only 9.5cm X 15.5cm X 4.5cm
* DisEqC Control
* 22KHz Control
* Fast Charge LI-ION Battery(1950mAh), Can Last 4 Hours
* Indicator Lights for 13/18 volts
* Indicator lights for 22 KHz
* USB port for software upgrades

Items Included:

* Sat-Link Meter WS6902 With Battery
* USB Software Upgrade Cable
* Neck Strap
* Carrying case
* 12VDC Power Charger
* Two Pin 12VAC Mains Power Charger

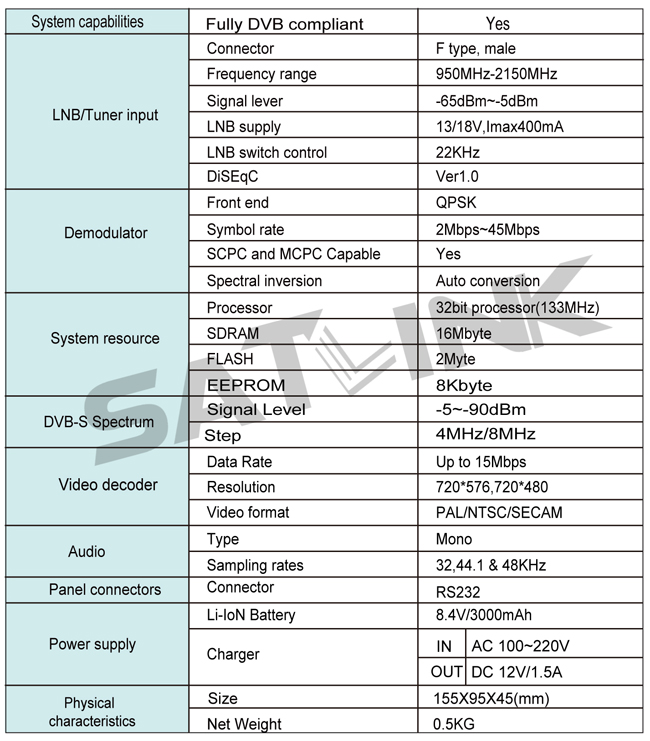

Technical Details:

System capabilities:
* Fully DVB compliant Yes
LNB/Tuner input Connector
* F type,male
Frequency range
* 950MHz-2150MHz
Signal lever
* -65dBm~-25dBm
LNB supply
* 13/18V,max400mA
LNB switch control
* 22KHz
DiSEqC
* Ver 1.0
Demodulator
* Front end
* QPSK
Symbol rate
* 2Mbps~45Mbps
SCPC and MCPC Capable
* Yes
Spectral inversion
* Auto conversion
System resource
* Processor
* 32bit processor (200MHz)
* SDRAM
* 16Mbyte
FLASH
* 2Mbyte
EEPROM
* 8Kbyte
Video decoder
* MPEG 2
* Main Proflie@Main Level
Data Rate
* up to 15M bits/s
Resolution
* 720*576, 720*480
Video format
* PAL / NTSC / SECAM
MPEG Audio
* MPEG 1 layer 1&2
* Type Mono
Sampling rates
* 32,44.1 and 48KHz
Serial data interface
* Connector USB type
Power supply
* Li-oN Battery 1950 mA
Supply voltage
* 12.6Volt
* charger 90-240V
Panel connectors
* Digital tuner input F type, male
Physical Specification
* Size 9.5x15.5x4.5 (cm)
* Weight(Net) 0.5 Kg
