SatLink WS6912-S2 Satellite Finder Meter with Spectrum Analyzer

SPECIAL FEATURES INCLUDE:

* View All The Actual FTA Satellite Channels On The Meters Screen.
* Auto Re-Calibration Due To The Unique Calibration System Built in to the Meter.
* Automaticlly Calculates Dish Angles And Settings Based On Your Longditude And Latitude.
* Calculates Your Dish Angles And Alignment Settings so you can quickly and accurately align the satellite dish and you can instantly check the stability of the channel right on the screen of the meter.
* Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
* All Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
* View All FTA Satellite Channels Including HD On Screen With Sound.

Main Functions:

* SYMBOL RATE 8PSK AND QPSK
* 3.5 Inch High definition TFT LCD Screen which Can show live Channels
* NEC Solution
* Shows both S/N and C/N
* Shows strength and quality readings
* Sound and Light Alarm When Lock Signal
* Shows channel picture
* Show numerical reading and bar reading
* Digital Meter for Signal Strength(in numerical & #118alue and picture)
* Easy Satellite Manager ( EDIT, delete and SCAN)
* Edit TP, Frequency, LNB switch, Symbol Rate etc.
* Completely programmable by the user
* Input Frequency 950-2150MHz
* Input Level -65-25dBm
* Input Impedance 75(ohm)
* Auto Calculate Angle of AZ ,EL
* Upgrade S/W by PC
* Easy to carry, size only 9.5cm X 15.5cm X 4.5cm
* DisEqC Control
* 22KHz Control
* Fast Charge LI-ION Battery(1950mAh), Can Last 4 Hours
* Indicator Lights for 13/18 volts
* Indicator lights for 22 KHz
* USB port for software upgrades
* USB software upgrade cable included
* Neck strap included
* Carrying case included
* 12VDC power charger included

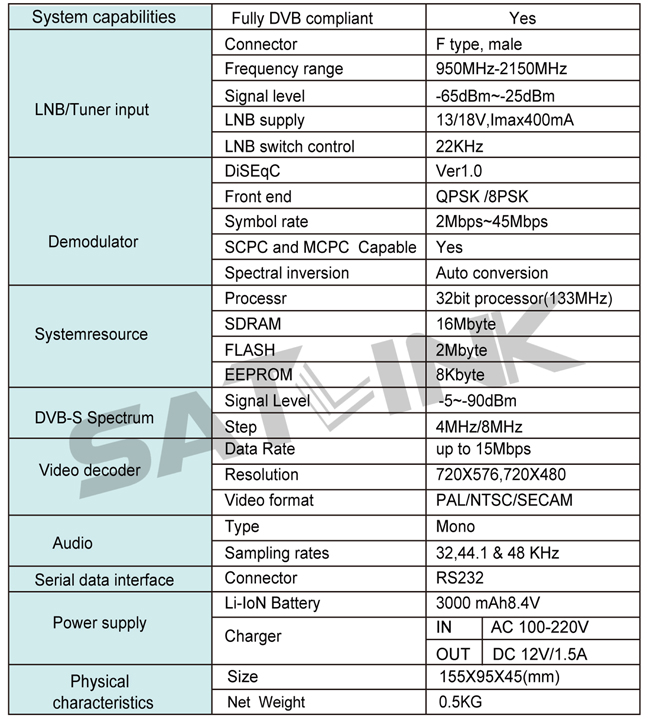

Technical Parameter:

* System capabilities Fully DVB compliant Yes
* LNB/Tuner input Connector F type,male
* Frequency range 950MHz-2150MHz
* Signal lever -65dBm~-25dBm
* LNB supply 13/18V,max400mA
* LNB switch control 22KHz
* DiSEqC Ver 1.0 /1.1/1.2

Demodulator Front end QPSK and 8PSK
Symbol rate 2Mbps~45Mbps
SCPC and MCPC Capable Yes
Spectral inversion Auto conversion

System resource Processor 32bit processor (200MHz)
SDRAM 64Mbyte
FLASH 16Mbyte
EEPROM 8Kbyte


Video decoder MPEG 2 Main Proflie@Main Level
Data Rate up to 15M bits/s
Resolution 720*576,720*480
Video format PAL/NTSC/SECAM

MPEG Audio MPEG 1 layer 1&2
Type Mono
Sampling rates 32,44.1 and 48KHz
Serial data interface Connector USB type
Power supply Li-oN Battery 1950 mA
Supply voltage 12.6Volt
charger 90-240V
Panel connectors Digital tuner input F type, male
Physical Specification Size 9.5x15.5x4.5 (cm)
Weight(Net) 0.5 Kg

For the first time in a economical digital meter, you are now able to view the actual channel on the screen of the meter. Now you can quickly and accurately align the satellite AND you can instantly check the stability of the channel right on the screen of the meter. Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. There is never a need to send your meter in for a upgrade.
Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
