Aerial Amplifiers

Aerial Amp 2 Way WORSEY F-Con VHF-UHF 8dB 2 in IR Pass For SKY

Aerial Amp 2 Way WORSEY F-Con VHF/UHF 8dB 2 in (IR Pass For SKY)


334056

Includes IR Pass For SKY TV Links Etc


2 Way amplifier distributes to multiple TV’s around the home

Features
Allows control of Sky Digital receivers when used with Triax Digital Links
Short circuit protection on each output
Power on LED
Screened housing
F Connectors
Easy to mount fixings
Mains powered

Technical
No. Inputs - 1
No. Outputs - 2
Input Frequency Range (MHz) - 47-862
Output Frequency Range (MHz) - 47-862
Return Path Frequency Range (MHz) - 5-30
Typical Gain (dB) - 2x8
Return - 2.5
Noise (dB) - 4
Output Level (dBuV)* - 92
Power Supply On each Output - 9V DC/15mA
Mains Supply - 230Vac, ±10%, 50Hz
* EN 50083-3, 3 Tone Test at -60dB Interference.
Amp 2 Way SLX Select Mains PSU Digilink Bypass

Amp 2 Way SLX Select Mains PSU Digilink Bypass


Price 16.17 (Excluding VAT at 20%)
Item OUT OF STOCK or ON ORDER
Click Here To Contact Us For Availability

Amp 2 Way SLX Select Mains PSU Digilink Bypass


Designed to provide the best in TV and FM signal reception, the SLX range of aerial amplifiers are built to the exacting standards of the professional, whilst at the same time remaining easy to use for the consumer. They have a fashionable, gun-metal grey finish to match existing TV/VCR/Hi-Fi units and come with ultrasonically molded mains plugs.
GLOBAL T120 IEC 2 Set Amp VHF/UHF 10dB IR Pass for SKY

GLOBAL T120 IEC 2 Set Amp VHF/UHF 10dB IR Pass for SKY


Price 20.83 (Excluding VAT at 20%)

GLOBAL T120 IEC 2 Set Amp VHF/UHF 10dB (IR Pass for SKY)


- Fully Compatible with the Sky Digital tvLINK System
- Powered from digibox or separate PSU
- High Performance
- Compact Design

The "T" Series tvLINK compatible TV Booster Splitters are designed to amplify the TV signals in a poor signal area, as well as distributing the TV signals, including the Sky Digital channel around the home.

The T120 can either be powered by the Sky digibox or via a separate mains power supply.

Each booster is designed to carry the return signal from the tvLINK back to the Sky digibox. This enables the viewer to watch and control from several locations.

Freq. Range (MHz): 47-860MHz
No. Outputs: 2
Gain @ 8V Supply (dB): 6
Gain @ 12V Supply (dB): 7
Noise Fig. (dB): 3
Output Capability @ 8V (dBuV): 80
Output Capability @ 12V (dBuV): 85
Isolation between Outputs (dB): 25
Input return Loss (dB): 9
Output Return Loss (dB): 8
tvLINK Compatible: YES
Power requirements: DigiboxRF2/Mains adaptor
Connectors: IEC Female
Indoor or Outdoor Use: Indoor
Aerial Amp 4 Way WORSEY F-Con VHF-UHF 8dB 2 in IR Pass For SKY

Aerial Amp 4 Way WORSEY F-Con VHF-UHF 8dB 2 in (IR Pass For SKY)


334057

Includes IR Pass For SKY TV Links Etc


4 Way amplifier distributes to multiple TV’s around the home

Features

Allows control of Sky Digital receivers when used with Triax Digital Links
Short circuit protection on each output
Power on LED
Screened housing
F Connectors
Easy to mount fixings
Mains powered
Technical

No. Inputs - 2
No. Outputs - 4
Input Frequency Range (MHz)
VHF - 47-230
UHF - 470-862
Output Frequency Range (MHz) - 47-862
Return Path Frequency Range (MHz) - 5-30
Typical Gain (dB)
VHF - 4x8
UHF - 4x8
Return - 2.5
Noise (dB) - 4
Output Level (dBuV)* - 92
Power Supply On each Output - 9V DC/15mA
Mains Supply - 230Vac, ±10%, 50Hz
* EN 50083-3, 3 Tone Test at -60dB Interference.
Amp 4 Way SLX Select Mains PSU Digilink Bypass

Amp 4 Way SLX Select Mains PSU Digilink Bypass


Price 17.01 (Excluding VAT at 20%)
Item OUT OF STOCK or ON ORDER
Click Here To Contact Us For Availability

Amp 4 Way SLX Select Mains PSU Digilink Bypass


Designed to provide the best in TV and FM signal reception, the SLX range of aerial amplifiers are built to the exacting standards of the professional, whilst at the same time remaining easy to use for the consumer. They have a fashionable, gun-metal grey finish to match existing TV/VCR/Hi-Fi units and come with ultrasonically molded mains plugs.
GLOBAL T140 IEC 4 Set Amp VHF/UHF 10dB IR Pass for SKY

GLOBAL T140 IEC 4 Set Amp VHF/UHF 10dB IR Pass for SKY


Price 24.99 (Excluding VAT at 20%)

GLOBAL T140 IEC 4 Set Amp VHF/UHF 10dB (IR Pass for SKY)


- Fully Compatible with the Sky Digital tvLINK System
- Powered from digibox or separate PSU
- High Performance
- Compact Design

The "T" Series tvLINK compatible TV Booster Splitters are designed to amplify the TV signals in a poor signal area, as well as distributing the TV signals, including the Sky Digital channel around the home.

The T140 can either be powered by the Sky digibox or via a separate mains power supply.

Each booster is designed to carry the return signal from the tvLINK back to the Sky digibox. This enables the viewer to watch and control from several locations.

Freq. Range (MHz): 47-860MHz
No. Outputs: 4
Gain @ 8V Supply (dB): 6
Gain @ 12V Supply (dB): 7
Noise Fig. (dB): 3
Output Capability @ 8V (dBuV): 78
Output Capability @ 12V (dBuV): 84
Isolation between Outputs (dB): 25
Input return Loss (dB): 7
Output Return Loss (dB): 7
tvLINK Compatible: YES
Power requirements: DigiboxRF2/Mains adaptor
Connectors: IEC Female
Indoor or Outdoor Use: Indoor
Aerial Amp 6 Way WORSEY F-Con VHF-UHF 11dB 2 in IR Pass For SKY

High Quality 6 Way Aerial Amplifier Booster WORSEY F-Con VHF/UHF 11dB 2 inputs


334054

Includes IR Pass For SKY TV Links Etc


6 Way amplifier distributes to multiple TV’s around the home

Features
Allows control of Sky Digital receivers when used with Triax Digital Links
Short circuit protection on each output
Power on LED
Screened housing
F Connectors
Easy to mount fixings
Mains powered

Technical
No. Inputs - 2
No. Outputs - 6
Input Frequency Range (MHz)
VHF - 47-230
UHF - 470-862
Output Frequency Range (MHz) - 47-862
Return Path Frequency Range (MHz) - 5-30
Typical Gain (dB)
VHF - 6x11
UHF - 6x11
Return - 2.5
Noise (dB) - 5
Output Level (dBuV)* - 90
Power Supply On each Output - 9V DC/15mA
Mains Supply - 230Vac, ±10%, 50Hz
* EN 50083-3, 3 Tone Test at -60dB Interference.
Amp 6 Way SLX Select Mains PSU Digilink Bypass

Amp 6 Way SLX Select Mains PSU Digilink Bypass


Price 25.52 (Excluding VAT at 20%)
Item OUT OF STOCK or ON ORDER
Click Here To Contact Us For Availability

Amp 6 Way SLX Select Mains PSU Digilink Bypass


Designed to provide the best in TV and FM signal reception, the SLX range of aerial amplifiers are built to the exacting standards of the professional, whilst at the same time remaining easy to use for the consumer. They have a fashionable, gun-metal grey finish to match existing TV/VCR/Hi-Fi units and come with ultrasonically molded mains plugs.
Aerial Amp 8 Way WORSEY F-Con VHF-UHF 8dB 2 in IR Pass For SKY

Aerial Amp 8 Way WORSEY F-Con VHF/UHF 8dB 2 in (IR Pass For SKY)


334055
Includes IR Pass For SKY TV Links Etc
8 Way amplifier distributes to multiple TV’s around the home

Features
Allows control of Sky Digital receivers when used with Triax Digital Links
Short circuit protection on each output
Power on LED
Screened housing
F Connectors
Easy to mount fixings
Mains powered

Technical
No. Inputs - 2
No. Outputs - 8
Input Frequency Range (MHz)
VHF - 47-230
UHF - 470-862
Output Frequency Range (MHz) - 47-862
Return Path Frequency Range (MHz) - 5-30
Typical Gain (dB)
VHF - 8x8.5
UHF - 8x8.5
Return - 2.5
Noise (dB) - 5
Output Level (dBuV)* - 90
Power Supply On each Output - 9V DC/15mA
Mains Supply - 230Vac, ±10%, 50Hz
* EN 50083-3, 3 Tone Test at -60dB Interference.
Amp 8 Way SLX Select Mains PSU Digilink Bypass

Amp 8 Way SLX Select Mains PSU Digilink Bypass


Price 49.99 (Excluding VAT at 20%)
Item OUT OF STOCK or ON ORDER
Click Here To Contact Us For Availability

Amp 8 Way SLX Select Mains PSU Digilink Bypass


Designed to provide the best in TV and FM signal reception, the SLX range of aerial amplifiers are built to the exacting standards of the professional, whilst at the same time remaining easy to use for the consumer. They have a fashionable, gun-metal grey finish to match existing TV/VCR/Hi-Fi units and come with ultrasonically molded mains plugs.
Aerial Amp 12 Way WORSEY F-Con VHF-UHF 10dB 2 in IR Pass For SKY

Aerial Amp 12 Way WORSEY F-Con VHF/UHF 10dB 2 in (IR Pass For SKY)


334064

Includes IR Pass For SKY TV Links Etc


12 Way amplifier distributes to multiple TV’s around the home

Features
Allows control of Sky Digital receivers when used with Triax Digital Links
Short circuit protection on each output
Power on LED
Screened housing
F Connectors
Easy to mount fixings
Mains powered

Technical
No. Inputs - 2
No. Outputs - 12
Input Frequency Range (MHz)
VHF - 47-230
UHF - 470-862
Output Frequency Range (MHz) - 47-862
Return Path Frequency Range (MHz) - 5-30
Typical Gain (dB)
VHF - 12x10
UHF - 12x10
Return - 2.5
Noise (dB) - 5
Output Level (dBuV)* - 93
Power Supply On each Output - 9V DC/15mA
Mains Supply - 230Vac, ±10%, 50Hz
* EN 50083-3, 3 Tone Test at -60dB Interference.

Customers who bought this product also purchased the following;:

UHF Aerial Coax Connector Plug
Aerial Amp 16 Way WORSEY F-Con VHF-UHF 10dB 2 in IR Pass For SKY

Aerial Amp 16 Way WORSEY F-Con VHF/UHF 10dB 2 in (IR Pass For SKY)


334065

Includes IR Pass For SKY TV Links Etc


16 Way amplifier distributes to multiple TV’s around the home

Features
Allows control of Sky Digital receivers when used with Triax Digital Links
Short circuit protection on each output
Power on LED
Screened housing
F Connectors
Easy to mount fixings
Mains powered

Technical
No. Inputs - 2
No. Outputs - 16
Input Frequency Range (MHz)
VHF - 47-230
UHF - 470-862
Output Frequency Range (MHz) - 47-862
Return Path Frequency Range (MHz) - 5-30
Typical Gain (dB)
VHF - 16x10
UHF - 16x10
Return - 2.5
Noise (dB) - 5
Output Level (dBuV)* - 93
Power Supply On each Output - 9V DC/15mA
Mains Supply - 230Vac, ±10%, 50Hz
* EN 50083-3, 3 Tone Test at -60dB Interference.
Global Loftbox-8/G 8 Way

Global Loftbox-8/G 8 Way


Price 52.49 (Excluding VAT at 20%)

Global Loftbox-8/G 8 Way

LOFTBOX Fully Compatable With IR Pass For SKY TV Links Etc


The Global LoftBox® is an integrated in-home distribution system. Normally located in the Loft, it combines TV, FM, DAB, CCTV and Satellite onto one down cable, feeding to a Global Triplex Plate or an MSWP, in the living room.
The LoftBox® takes a return feed from the living room which would typically come from the RFout2 connector on the back of the Sky digibox, Sky+ or Sky HD set-top box, or from a "Y" splitter.

FM and DAB are diplexed onto the return feed and then distributed to additional points within the house via Global TV/FM diplex plates. Each outlet point is able to receive normal terrestrial TV, FM, DAB, CCTV and the selected Satellite channel.

The LoftBox® fully supports the Infrared control signals from the tvLINK® remote eye back to the Sky digibox.
RF UHF Modulator SLXRF Select

RF UHF Modulator SLXRF Select


Price 25.52 (Excluding VAT at 20%)

RF UHF Modulator SLXRF Select


The SLx RF UHF modulator allows the signal from a VCR/DVD player, camcorder, CCTV camera or other device with an AV only output to be viewed on an ordinary TV without a Scart or Phono input, or alternatively where a TV has only one Scart socket

•Ideal for security/CCTV applications
•Easy set-up - simply plugs into TV’s existing coax/RF input Scart, Phono and aerial inputs
•Wideband - 8-way DIP switch enables AV signal to be viewed on TV channels 21 to 69
•Adjustable video enhancement
•Mains powered - no need for additional AC/DC power adaptor
•Durable metal casing
•Supplied in attractive retail box packaging with Euroslot

* Also Ideal For Connecting TiVo UK Boxes To Any Receiver Freeview or Freesat Where No UHF Modulator is Present
UHF Connector Coupler

UHF Connector Coupler


Price 0.50 (Excluding VAT at 20%)

UHF Connector Coupler


Connects 2 UHF Coax Connectors Together
100x Satellite F Connectors Screw On Type 1mm

100x Satellite F Connectors Screw On Type 1mm


Price 11.99 (Excluding VAT at 20%)

100x Budget Type F-Connectors Screw On Type 1mm


* Screw on 'F' Connector
* Decent quality at a very competitive price
* Suitable for use with all 7mm coax cables including RG6, WC100 and WF100
(Bag of 100 F-Connectors)
Satellite F-Line Coupler Connects 2 F-Type Satellite Cables

Satellite F Coupler Connects 2 x F Connectors Together


Connector F Line Coupler Back to Back (Female To Female)
SUITABLE FOR ALL STANDARD 7mm SATELLITE AND AERIAL CABLES
(Single F Coupler)
100x Satellite F-Line Couplers Connects 2 F-Type Satellite Cables

100x Satellite F-Line Couplers Connects 2 x F Connectors Together


Bag of 100x Connectors F Line Coupler Back to Back (Female To Female)
SUITABLE FOR ALL STANDARD 7mm SATELLITE AND AERIAL CABLES
(Bag Of 100 F Couplers)
F-Connector Female To COAX Male Adaptor

F-Connector Female To COAX Male Adaptor


Price 0.40 (Excluding VAT at 20%)

F-Connector Female To COAX Male Adaptor


'F' Female - COAX Male Adaptor

This adaptor converts a 'F' plug to a male coax plug.
Particularly useful when using signal strength meters on outlet plates.
F female to IEC 169-2(m)
Cable BLACK Satellite LOW LOSS CAI And SKY Approved (Per Mtr)

Cable BLACK Satellite LOW LOSS CAI And SKY Approved (Per Mtr)


Price Per Metre 0.50 (Excluding VAT at 20%)

Cable BLACK Satellite LOW LOSS CAI And SKY Approved


PRICE IS PER METER BLACK


Add To Cart Then Please Adjust Your Quantity Once You Are In The Cart Section.

Customers who bought this product also purchased the following;:

UHF Aerial Coax Connector Plug
Triax Digital Freeview Aerial High Gain Unix 52 Element Wide Band
Cable WHITE Satellite LOW LOSS CAI And SKY Approved (Per Mtr)

Cable WHITE Satellite LOW LOSS CAI And SKY Approved (Per Mtr)


Price Per Metre 0.50 (Excluding VAT at 20%)

Cable WHITE Satellite LOW LOSS CAI And SKY Approved (Per Mtr Length)


PRICE IS PER METER WHITE


Add To Cart Then Please Adjust Your Quantity Once You Are In The Cart Section.
100m Cable BLACK Satellite LOW LOSS CAI + SKY Approved (100 Mtr)

100m Cable BLACK Satellite LOW LOSS CAI And SKY Approved (100 Mtr Length)


PRICE is For 100m Length BLACK
100m Cable WHITE Satellite LOW LOSS CAI + SKY Approved (100 Mtr)

100m Cable WHITE Satellite LOW LOSS CAI And SKY Approved (100 Mtr Length)


PRICE is for 100m Length WHITE
250m Cable Reel WHITE Satellite LOW LOSS CAI + SKY Approved (250 Mtr)

250m Cable Reel WHITE Satellite LOW LOSS CAI And SKY Approved (250 Mtr Reel)


PRICE IS FOR 1x 250m REEL WHITE
Tri-Link Kit 370407 Control Freesat Freeview Sky From Extra Room

VIEW AND CONTROL FREESAT, FREEVIEW AND SKY AROUND YOUR HOME!


Code: 370407
With the introduction of Digital TV normal analogue services around the home have been lost. The New Triax Tri-Link kit solves the issue of distributing Freesat, Freeview and SKY around your home, with the ability to view and control all STB’s on existing analogue sets.

- Removes the need to purchase individual STB’s for each additional TV or Upgrading to Flat panel TV’s
- Tri– Link can control upto 3 independent pieces of equipment including SKY
- Watch and control recorded programmes from your PVR around the home
- Optional DVD configuration
- Powers up Digital Link Amplifier and Link eyes
- Controls SKY, SKY+ in the conventional way via RF2
- Fully agile modulator
- SCART loop through
- Compact and stylish

The Tri-Link Kit Contains: - Modulator, power supply, compact eye and IR Receivers.

Take back control of your TV viewing with the Triax Tri-Link!

Download Tri-Link Spec Sheet PDF

Sky Remote Control And TV Link Bundle

Sky Remote Control And TV Link Bundle


Price 15.21 (Excluding VAT at 20%)
Item OUT OF STOCK or ON ORDER
Click Here To Contact Us For Availability

Sky Box Remote Control And TV Link Bundle


This Remote is suitable for Sky Box Standard Receivers and is Bundled With A Sky TV Link Remote Eye.
To Use This Product is as EASY AS 123.

1. Just Run A Single Coax Cable Run From Your Sky Receivers Second UHF Socket To Any Room In The House.
2. Plug The Sky TV Link Remote Eye into The other End of Your Cable in the Other Room And The Plug The Cable Into Your TV Set In The Other Room.
3. Tune Your TV Set into The Sky UHF Signal From Your Sky Receiver, Then Install batteries Into The Remote Control And Just Point At The Remote Eye and You Should be Controlling The Sky Box From Your Other Room. THAT'S IT!

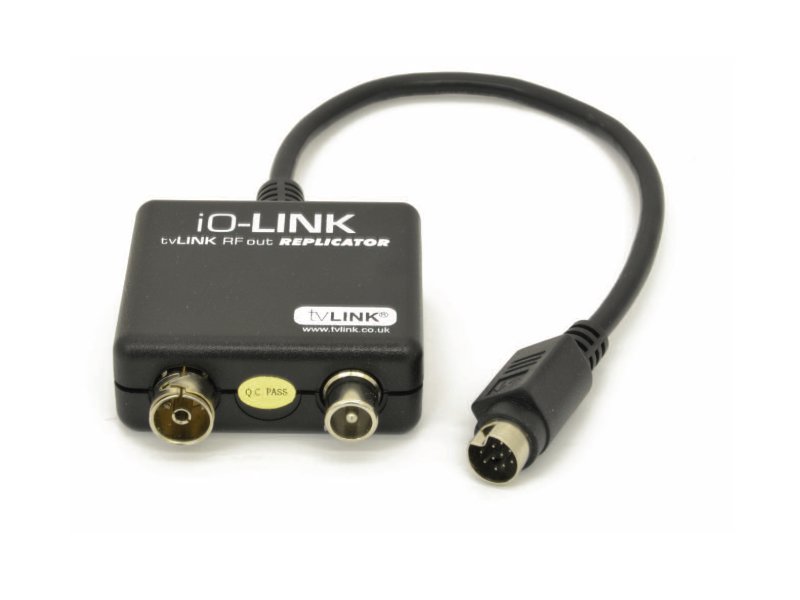

Global iO-Link RF Out Replicator

Global iO-Link RF Out Replicator

Global iO-Link RF Out Replicator


TV Link For SKY Receivers With No RF2 Output


The Global iO-LINK creates a tvLINK enabled RF output for new Sky HD set top boxes with no RF2 output. Once installed the iO-LINK can be connected to an in home distribution system for viewing at multiple TV locations.

If more than x1 tvLINK eye is required to be controlled you would need to use a mains powered IR amplifier or add a DC inserter and Power Supply as the iO-LINK RF Out Replicator does not power more than x1 eye

Can be used with the Global IR amps ( for remote control of Sky receiver ) and with Global SMATV resetters

Global iO-Link RF Out Replicator Info PDF

Sky Plus Remote Control And TV Link Bundle

Sky Plus Remote Control And TV Link Bundle


Price 17.38 (Excluding VAT at 20%)
Item OUT OF STOCK or ON ORDER
Click Here To Contact Us For Availability

Sky Plus Remote Control And TV Link Bundle


This Remote is suitable for Sky Plus Receivers and is Bundled With A Sky TV Link Remote Eye.
To Use This Product is as EASY AS 123.

1. Just Run A Single Coax Cable Run From Your Sky Plus Receivers Second UHF Socket To Any Room In The House.
2. Plug The Sky TV Link Remote Eye into The other End of Your Cable in the Other Room And The Plug The Cable Into Your TV Set In The Other Room.
3. Tune Your TV Set into The Sky UHF Signal From Your Sky Plus Receiver, Then Install batteries Into The Remote Control And Just Point At The Remote Eye and You Should be Controlling The Sky Plus From Your Other Room. THAT'S IT!
Sky TV Remote Link Plus (Antiference)

Sky TV Remote Link Plus (Antiference)


Price 9.99 (Excluding VAT at 20%)

Sky TV Remote Link Plus (Antiference)


New ME200 Sky Remote TV Link Plus, Ideal For Flat Screens, This Model Has Extra Flexible Lead Attached And Has Infra Red Cable.
New smaller version of our popular Remote Link eye, the ME200 is designed to sit discretely on flat screen TV’s of all sizes.
Used to control TV devices from another room. Its simple to install, normally used to control sky boxes using the RF output allowing you to change the channel, view listings and more from your remote.
Sky TV Remote Link (SLX)

Sky TV Remote Link (SLX)


Price 9.99 (Excluding VAT at 20%)

Sky TV Remote Link (SLX)


Used to control TV devices from another room. Its simple to install, normally used to control sky boxes using the RF output allowing you to change the channel, view listings and more from your remote.

Enables you to control digibox from another room, Just Plugs in other end of cable in bedroom etc.
Sky TV Link (Global)

Sky TV Link (Global)


Price 9.99 (Excluding VAT at 20%)
Item OUT OF STOCK or ON ORDER
Click Here To Contact Us For Availability

SKY TVLINK Global


Used to control TV devices from another room. Its simple to install, normally used to control sky boxes using the RF output allowing you to change the channel, view listings and more from your remote.

Recently Viewed











1069345836
