Commercial Aerial Amplifiers

GLOBAL DIP1 Diplexer Splitter

GLOBAL DIP1 Diplexer Splitter


Price 7.49 (Excluding VAT at 20%)

GLOBAL DIP1 Diplexer Splitter 2 In 1 Out or 1 In 2 Out


Splits Diplexed Signals From Satellite And Aerial Systems



The DIP1 Splitting diplexer is normally used indoors to separate satellite and TV. It employs high isolation filters to prevent interference between the satellite and TV. The satellite DC is fed through the Diplexer to the combining diplexer dip1, dip2, dip2-dc.

* Allows a Satellite signal to be added to an existing system
* High isolation between Satellite and TV ports
* Low insertion Loss

TV Port: 47-860MHz
Insertion Loss: <2dB
Isolation: >40dB
Current Passed to UHF/VHF Port: 0
Impedance: 50ohms
Satellite Port: 950 -2150MHz
Insertion Loss: <3dB
Isolation: 30dB
Current Passed: A max
External Installation: No

Download GLOBAL Diplexers Tech Information Sheet Here

GLOBAL DIP2-DC IF & UHF-FM Diplexer

GLOBAL DIP2-DC IF & UHF-FM Diplexer


Price 9.49 (Excluding VAT at 20%)

GLOBAL DIP2-DC IF & UHF-FM Diplexer


Enables Satellite IF And UHF-FM Signals To Be Combined And Sent Down A Single Coax Cable



* Allows a Satellite signal to be added to an existing system
* High isolation between Satellite and TV ports
* Low insertion Loss
* Weatherproof case

The DIP2-DC has high isolation to prevent the satellite LNB noise interferring with the terrestrial signals or harmonics of the terrestrial signals.

It should be used for systems using a VHF or UHF amplifier powered through the coax. This supplies a 12V, 100mA max supply to the terrestrial input. The current for both the satellite LNB and the terrestrial amplifier is supplied by the satellite receiver.

TV Port: 47-860MHz
Insertion Loss: < 2dB
Isolation: > 40dB
Current Passed: DIP2-DC100mA max 12V
Impedance: 75ohms
Satellite Port: 950 -2150MHz
Insertion Loss: < 3dB
Isolation: > 30dB
Current Passed: 1A max
External Installation: YES

Download GLOBAL Diplexers Tech Information Sheet Here

DELTA SV528 Five Wire Launch Amp

DELTA SV528 Five Wire Launch Amp


Price 129.99 (Excluding VAT at 20%)

DELTA SV528 Five Wire Launch Amp


5 In 4xIF-UHF 5 Out IF 26-28dB/UHF 21-28dB 116dBuV


DELTA SV528 Five Wire Launch Amp

This 5 wire (5 in, 5 out) headend amplifier is suitable for both analogue and digital signals and has been designed for cascade applications. it includes a built in SMPS power supply and level adjustment.

Frequency Range MHz: 5-30 47-862 950-2200
Inputs: 4 x Sat, 1 x Terr
Outputs: 5
Gain active-mode dB: Sat 7...10, Ter 7..12
Attenuator dB: 4 x 0...15 SAT, 1 x 0...15 TERR
Noise figure dB: Sat 9, Terr 8
Output Level SAT 35 dB IMA3 dBuV: 116
Output Level SAT 60 dB IMA3/IMA2 dBuV: 114/95
Isolation Inputs dB: > 25
22 kHz tone: Selectable
Operating voltage: 185 - 265 V~
Remote feeding LNB: 13/18 VDC 500ma, selectable 12 VDC, 450 mA at output for remote feeding of cascade devices
Power consumption without LNB remote feeding: 11.7 W
Connectors: F female
Dimension mm: 210 x 125 x 73
Weight kg: 0.8

Manufacturers Spec Sheet PDF

DELTA MBV40-6 Multiband Launch Amp

DELTA MBV40-6 Multiband Launch Amp


Price 114.99 (Excluding VAT at 20%)

DELTA MBV40-6 Multiband Launch Amp


6 In 4XUHF-DAB-FM 1 Out 44dB 121dBuV


HQ-Series
Die cast housing
High output level with Push-Pull GaAs-FET Technology
DVB-T low noise input
Excellent linearity
Attenuators - 20 dB at all inputs
Switch mode power supply
Remote feeding for pre-amplifiers
Output test point
Inputs: 6
Frequency Range MHz: 87.5-108 (FM), 47-68, 174-230 (Bd.I/III), 174 - 230 (Bd. III), 470 - 862 (Bd. IV/V, DVB-T)
Gain dB: 36 (FM), 36 (Bd.I/III), 36 (Bd. III), 44 (Bd. IV/V), 47 (DVB-T)
Remote feeding (max. current drain 100 mA): 12 V / 60 mA (Bd. I/III, Bd. III, Bd. IV/V, DVB-T)
Attenuator dB: 0...20 (FM, Bd.I/III, Bd.III, Bd. IV/V, DVB-T)
Noise figure dB: 7 (FM, Bd.I/III, Bd.III, DVB-T), 10.5 (Bd. IV/V)
Linearity dB: +/- 2.0
Output Level 60 dB IMA 3 dBuV: 121
Output Level 60 dB IMA 2 dBuV: 115
Return Loss: > 10
Operating Voltage VAC: 185-265
Power consumption W: 10.3
Connectors: F female / Output test point -30dB
Dimensions mm: 210 x 122 x 70
Weight KG: 1.2

Code: 10161388

Download Spec Sheet For MBV40-6-DELTA PDF

Related products:

DELTA MBV40-3 Multiband Launch Amp

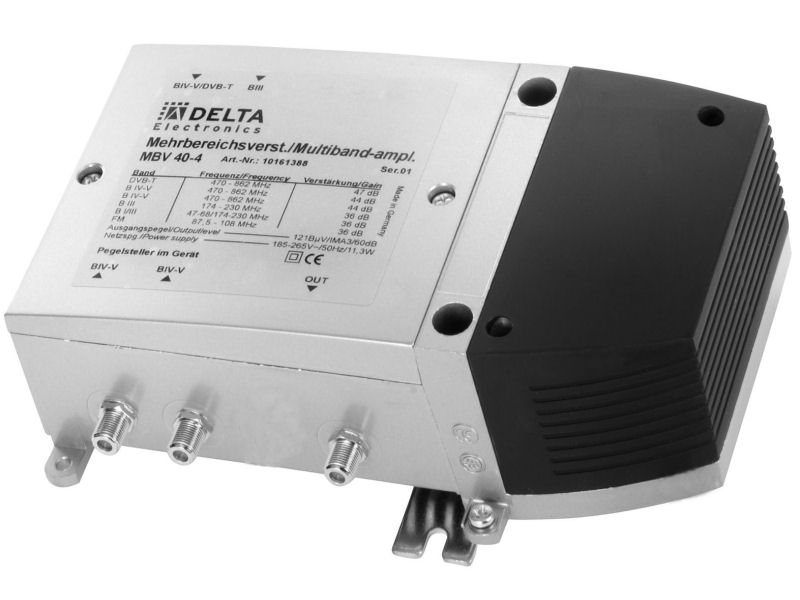

DELTA MBV40-4 Multiband Launch Amp

DELTA MBV40-4 Multiband Launch Amp


Price 84.95 (Excluding VAT at 20%)

DELTA MBV40-4 Multiband Launch Amp


4 In 2xUHF-FM-FM 1 Out 40dB 117dBuV


HQ-Series
Die cast housing
High output level
DVB-T suitable
Excellent linearity
Attenuators - 20 dB at all inputs
Switch mode power supply
Remote feeding for pre-amplifiers, selectable
Inputs: 4
Frequency Range MHz: 47-68, 87.5-108 (Bd.I/FM), 174 - 230 (Bd. III), 470 - 862 (Bd. IV/V, DVB-T)
Gain dB: 34 (Bd.I/FM), 34 (Bd. III), 40 (Bd. IV/V, DVB-T)
Remote feeding (max. current drain 100 mA): 12 V / 100 mA (Bd. III), 12 V / 100mA (Bd. IV/V, DVB-T)
Attenuator dB: 0...20 (Bd.I/FM), 0...20 (Bd. III), 0...20 (Bd. IV/V, DVB-T)
Noise figure dB: 5 (Bd.I/FM), 5 (Bd. III), 8 (Bd. IV/V, DVB-T)
Linearity dB: +/- 2.0
Output Level 60 dB IMA 3 dBuV: 117
Output Level 60 dB IMA 2 dBuV: 109
Operating Voltage VAC: 185-265
Power consumption W: 7
Connectors: F female
Dimensions mm: 210 x 122 x 70
Weight KG: 1.2

Code: 10161397

Download Spec Sheet For MBV40-4-DELTA PDF

DELTA MBV40-3 Multiband Launch Amp

DELTA MBV40-3 Multiband Launch Amp


Price 74.99 (Excluding VAT at 20%)

DELTA MBV40-3 Multiband Launch Amp


3 In UHF-DAB-FM 1 Out 42dB 117dBuV


It is unusual to find a product of this quality at such value. The MBV 40-3 is the first in the series of MBV Splitband Amplifiers, complimenting the MBV 40-4 and MBV 40-6 perfectly.

HQ Series
Die Cast Housing
High Output Power Level
Level attenuator - 20dB at all inputs
Switch Mode power supply with LED indicator
Selectable remote power 12V on DAB/UHF inputs
Low noise figure
Very low ripple
Outstanding value for money
Inputs: 3
Frequency Range MHz: 87.5 - 108 (FM), 174 - 230 (Bd. III), 470 - 862 (Bd. IV/V, DVB-T)
Gain dB: 24 (FM), 34 (Bd. III), 42 (Bd. IV/V, DVB-T)
Remote feeding (max. current drain 100 mA): 12 V / 100 mA (Bd. III), 12 V / 100mA (Bd. IV/V, DVB-T)
Attenuator dB: 0...20 (FM), 0...20 (Bd. III), 0...20 (Bd. IV/V, DVB-T)
Noise figure dB: 7 (FM), 5.5 (Bd. III), 4.5 (Bd. IV/V, DVB-T)
Linearity dB: +/- 2.0
Output Level 60 dB IMA 3 dBuV: 117
Output Level 60 dB IMA 2 dBuV: 109
Return Loss dB: > 10
Operating Voltage VAC: 185-265
Power consumption W: 7
Connectors: F female
Dimensions mm: 188 x 85 x 50
Weight KG: 1.2

Download Spec Sheet For MBV40-3-DELTA PDF

Related products:

DELTA MBV40-6 Multiband Launch Amp
DELTA BKD30 Launch Amp

DELTA BKD30 Launch Amp


Price 64.99 (Excluding VAT at 20%)

DELTA BKD30 Launch Amp


1 In UHF/VHF 1 Out 31dB 115dBuV


DELTA BKD30 Launch Amp 5-862MHz

The BKD series of amplifiers really do reflect the Germans ability to produce well designed quality amplifiers - Delta's background in producing amplifiers for the cable industry shines through in this range. It seems as though the more channels you throw at them the more they like it, producing perfect pictures every time.

With three models in the range carried as stock items please note that remote powered versions are available to order, just contact our sales team and ask for details.

Die-cast housing
Plug-in slot for active or passive return path modules
Switchable gain
Attenuator and equaliser
Grounding clamp
Easy mounting system
Gain dB: 23/31 +/-1 Switchable
Frequency range MHz: 5-862
Slot for Return Path: 1
Noise dB: 6
Linearity dB: +/- 0.7
Equaliser dB: 0...18
Attenuator: 0...20
Interstage equaliser - 5 dB selectable
Output Level
IMA3 > 60dB dBµV: 115
IMA2 > 60dB dBµV: 104
CTB > 60dB/42Ch dBµV: 99
CSO > 60dB/42Ch dBµV: 96
Operating Voltage: 230 V~
Power consumption W: 6.0
Outputs: 1
Test point input: - 20 dB (F female)
Test point output: - 20 dB (F female)
Connections: F female
Dimensions mm: 170 x 85 x 50
Weight kg: 1.1

Manufacturers Spec Sheet Download PDF

Related products:

DELTA BKD36P Launch Amp

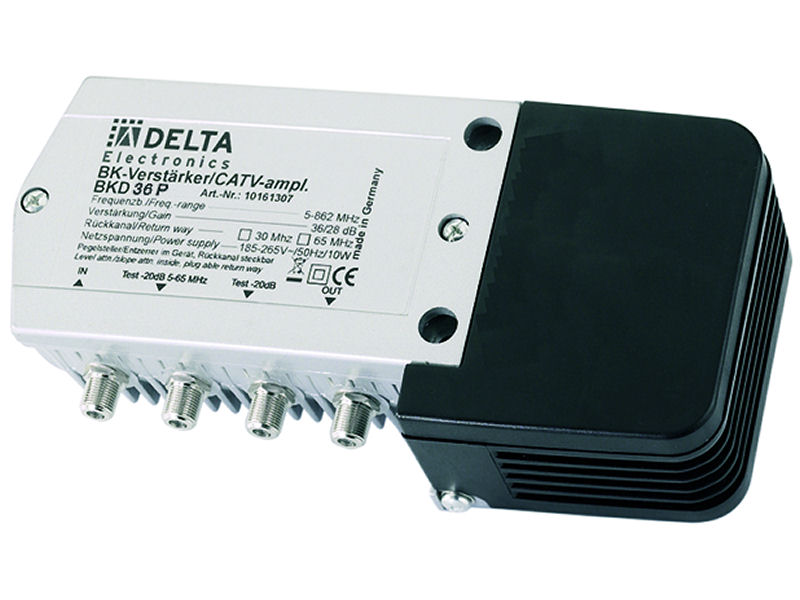

DELTA BKD36P Launch Amp

DELTA BKD36P Launch Amp


Price 109.99 (Excluding VAT at 20%)

DELTA BKD36P Launch Amp


1 In UHF/VHF 1 Out 36dB 122dBuV


DELTA BKD36P Launch Amp 5-862MHz

The BKD series of amplifiers really do reflect the Germans ability to produce well designed quality amplifiers - Delta's background in producing amplifiers for the cable industry shines through in this range. It seems as though the more channels you throw at them the more they like it, producing perfect pictures every time.

Die-cast housing IP 20, low temperature rise through modern cooling concept for high reliability and long life-time.

Excellent EMC characteristics
Easy mounting through compact design
With plug-in slot for active or passive return path modules

(optional p. 40)

Attenuation and equalization with variable attenuator (ex-factory) or with pads, adjustable in steps of 1 dB
Modular power supply: in case of service the power supply can be easily replaced or upgraded. No readjustment of amplifier necessary, min. interruption of operation
Input and output test points
High output drivability through Push-Pull GaAs-FET technology
Low noise factor

Manufacurers Spec Sheet PDF

Related products:

DELTA BKD30 Launch Amp
DELTA BK22 Launch Amp

DELTA BK22 Launch Amp


Price 29.99 (Excluding VAT at 20%)

DELTA BK22 Launch Amp


1 In UHF/VHF 1 Out 20dB 100dBuV


DELTA BK22 Distribution Amp 5-862MHz

ECO-Line, die-cast housing without return path
Compact and modern die-cast housing with very good heat sink
Use of GaAs-FET IC’s with high output level and very low noise figure
Interstage equalisation for perfect level adjustment
Excellent linearity simplifies calculation of complex networks
High configuration comfort with test points and switch-mode power supplies
Frequency range MHz: 5-862
Slope frequency point, selectable MHz
Gain dB: 19...22
Noise figure dB: 7
Attenuator dB: 0...20
Output level
IMA 3 > 60 dB / DIN dBuV: 114
IMA 2 > 60 dB / DIN dBuV: 99
CTB > 60 dB / 42 ch. / Cenelec dBuV: 97
CSO > 60 dB / 42 ch. / Cenelec dBuV: 92
Operating voltage, local feeding V ~: 230
Power consumption W: 4,5
Outputs: 1
Connections: F

Manufacturers Spec Sheet PDF

Related products:

DELTA BK30 Launch Amp
DELTA BK30 Launch Amp

DELTA BK30 Launch Amp


Price 34.99 (Excluding VAT at 20%)

DELTA BK30 Launch Amp


1 In UHF/VHF 1 Out 30dB 105dBuV


DELTA BK30 Distribution Amp 5-862MHz

ECO-Line, die-cast housing without return path
Compact and modern die-cast housing with very good heat sink
Use of GaAs-FET IC’s with high output level and very low noise figure
Interstage equalisation for perfect level adjustment
Excellent linearity simplifies calculation of complex networks
High configuration comfort with test points and switch-mode power supplies
Frequency range MHz: 5-862
Slope frequency point, selectable MHz
Gain dB: 28....30
Noise figure dB: 7
Attenuator dB: 0...20
Output level
IMA 3 > 60 dB / DIN dBuV: 114
IMA 2 > 60 dB / DIN dBuV: 99
CTB > 60 dB / 42 ch. / Cenelec dBuV: 97
CSO > 60 dB / 42 ch. / Cenelec dBuV: 92
Operating voltage, local feeding V ~: 230
Power consumption W: 6,0
Outputs: 1
Connections: F

Manufacturers Spec Sheet PDF

Related products:

DELTA BK22 Launch Amp
